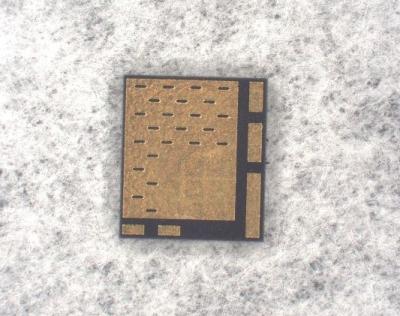

Taille du panneau 310*320 mm Niveau du panneau QFN Faible résistance électrique
Prix: Negotiable
MOQ: Negotiable
Heure de livraison: Negotiable
Description: 310*320mm panel size, Chip size: 0.76*0.61mm; Package size: 2.76*1.97mm; Package thickness: 360um, Application: Power management, Process introduction: The coming wafer is bumped with Cu post (e.g., 50 micro meters), after thining and dicing of wafer, chips with bump are picked and plac... Voir plus
➤ Visiter Site Internet
Façade de l'emballage au niveau du panneau vers le bas-EWLB Dissipation thermique élevée Fiabilité élevée
Prix: Negotiable
MOQ: Negotiable
Heure de livraison: Negotiable
Description: 1,Compared with traditional packaging methods (e.g., wire bond and substrate), it has the obvious characteristics of high heat dissipation (thick Cu), high reliability (short connection and strong surface adhesion), high voltage and high current (thick Cu). 2,It can be used in various a... Voir plus
➤ Visiter Site Internet
0Épaisseur du panneau, niveau de l'emballage, niveau du panneau BGA/CSP pour adaptateur d'alimentation
Prix: Negotiable
MOQ: Negotiable
Heure de livraison: Negotiable
Marque: FZX Fanout Process and Product
Description: 310*320mm panel size; Package size: 2.0*2.0mm; Package thickness: 0.5mm; Chip size: 1.0*1.6mm; Process type: FOPLP (Face Up); Process introduction: After the chip is picked and placed onto the temporary carrier board, the packaging process is carried out by compression molding, plasma c... Voir plus
➤ Visiter Site Internet
Niveau du panneau Emballage Niveau du panneau SiP Utilisé dans diverses industries
Prix: Negotiable
MOQ: Negotiable
Heure de livraison: 1 month
Marque: FZX Fanout Process and Product
Description: 310*320mm panel size; Advantage:Small SiP package size,such as 6*6mm/7.5*7.5mm;low power consumption;multi-chip packages, high assembly efficiency. Technical capability: different functional dies are assembled in one system,for example, MCU, Bluetooth and some passive chips are assemble... Voir plus
➤ Visiter Site Internet

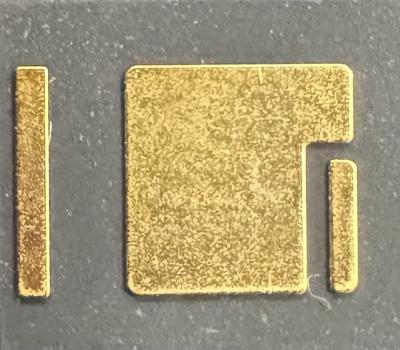

Taille du panneau 310*320mm Puce MOS mince Silicium Faible consommation d'énergie
Prix: Negotiable
MOQ: 3000pcs
Heure de livraison: 1 month
Marque: FZX Fanout Process and Product
Description: Multi-chip MOSFET 310*320mm panel size; Package size: 2.0*2.0mm; Package thickness: 0.5mm; Chip size: 1.0*1.6mm; Process type: FOPLP (Face Up); Applications: Military applications, new energy vehicles, Power adapter, power amplifier, automotive electronics, etc. Competitive Advantage: 1... Voir plus
➤ Visiter Site Internet

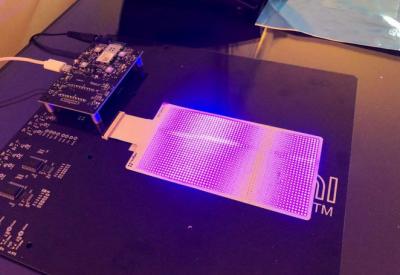

Puce à LED Puce à courant constant à LED en silicium Puce à courant constant à LED 0,4 mm*0,555 mm*0,20 mm
Prix: Negotiable
MOQ: 3000pcs
Heure de livraison: 1 month
Marque: FZX Fanout Process and Product
Description: LED constant current driver chip; Chip size 0.4mm*0.555mm*0.20mm; Panel size 310*320mm; Package size 122mm*50mm; Process: Patch on the temporary carrier board, press EMC film, etching, then drill the hole, do electrode-plating. Applications: Mini-LED, lamps. Specifications: Chip size 0.... Voir plus
➤ Visiter Site Internet
310*320mm Emballage de niveau de panneau de ventilation (FOPLP) Puce de résistance ((Silicone)
Prix: Negotiable
MOQ: 3000pcs
Heure de livraison: 1 month
Marque: FZX Fanout Process and Product
Description: Chip size: 0.76*0.61; 1.43 * 1.06； Package size: 2.76*1.97; 2.58 * 2.92； Package thickness: 360um； Process introduction: After the chip is reconstructed to the temporary carrier board, the pick and placement is performed and later plastic compressive molding, followed by grinding, laser... Voir plus
➤ Visiter Site Internet

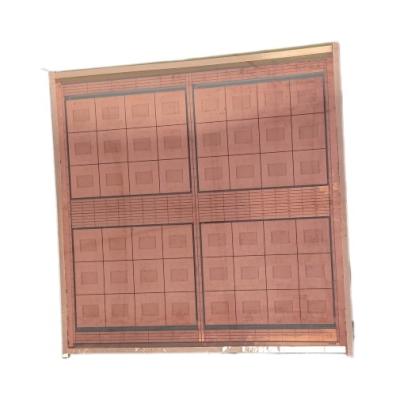

Emballage de niveau de panneau à ventilateur 310*320 mm (FOPLP)
Prix: Negotiable
MOQ: 3000pcs
Heure de livraison: 1 month
Marque: FZX Fanout Process and Product
Description: Panel size:310*320mm; Package size: 12*18*0.9mm; Package thickness: 0.9mm; Brief introduction to the process: After the temporary carrier board is attached, plastic sealing and chip reconstruction are done, the first layer of RDL is made, followed by etching +ABF pressing + laser drilli... Voir plus
➤ Visiter Site Internet
Produit GaN 310*320mm enveloppé en panneau de ventilation
Prix: Negotiable
MOQ: 3000pcs
Heure de livraison: 1 month
Marque: FZX Fanout Process and Product
310*320mm Panel size; DIE1 size:1.89*1.64mm; DIE2 size:0.926*0.626mm; Package size:6*7mm; Package thickness: 0.42mm; Process flow: The Face down packaging method is adopted for mounting, plastic sealing and grinding, the first layer of process is ABF pressing, and then etching and punching on the ba... Voir plus
➤ Visiter Site Internet

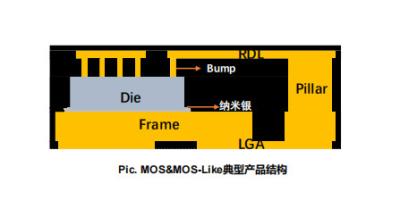

L'emballage à niveau de panneau à ventilation (FOPLP) - Structure du produit (face vers le haut) - Bump de gaufre
Prix: Negotiable
MOQ: 3000pcs
Heure de livraison: 1 month
Marque: FZX Fan-Out Panel Level Packaging
Description: Die with bump of MOS&MOS-Like package can be picked and placed onto the temporary carrier; C mold is performed after above die placement with face-up methodology. The mold grinding, PVD and plating will be made for RDL. The TMV will be made for the top/bot layer connection. The surf... Voir plus
➤ Visiter Site Internet
Emballage à l'échelle du panneau de ventilation (FOPLP) - Structure du produit (face vers le haut) - Boule en fil de fer
Prix: Negotiable
MOQ: 3000pcs
Heure de livraison: 1 month
Marque: FZX Fanout Process and Product
Description: As shown in above photo, compared with traditional packaging methods, the wire bond ball (copper or gold) can be made from wire bond process, it is similar to bump of chip, therefore, it has higher integration, high reliability, and low cost; through the FOPLP process , multiple MCU and... Voir plus
➤ Visiter Site Internet
Emballage au niveau du panneau de ventilation (FOPLP) Structure du produit Emballage intégré
Prix: Negotiable
MOQ: 3000pcs
Heure de livraison: 1 month
Marque: FZX
Description: 1,Compared with traditional packaging methods, this advanced packaging replaces wire bond and substrate, therefore, it has demonstrated the characteristic of higher integration, high reliability, and low cost ; 2,While maintaining the original foot position design, it is much thinner an... Voir plus
➤ Visiter Site Internet
Enveloppe de niveau de panneau à ventilateur 310*320 mm (FOPLP) Radiofréquence (RF)
Prix: Negotiable
MOQ: 3000pcs
Heure de livraison: 1 month
Marque: FZX Fanout Process and Product
Description: Panel size:310*320mm Package size: 7*6mm Package thickness: 0.75mm Process flow: The Face down packaging method is adopted for mounting, plastic sealing and grinding, the first layer of process is ABF pressing, and then etching and punching on the back of the plastic sealing material, t... Voir plus
➤ Visiter Site Internet
Emballage de niveau de panneau à ventilateur 310*320 mm (FOPLP) Emballage de microphone MEMS
Prix: Negotiable
MOQ: 3000pcs
Heure de livraison: 1 month
Marque: FZX Fanout Process and Product
Description: Plating uniformity: ≤10%; Package size: 3*2mm; Package thickness: 0.26mm; Chip size: 0.96*0.78mm; Process type: FOPLP (310X320mm); Applications: Mobile phone, Bluetooth headset,MEMS, wearable electronics. Specifications: Package size: 3*2mm; Package thickness: 0.26mm; Chip size: 0.96*0.... Voir plus
➤ Visiter Site Internet
Pour les appareils à LED, la valeur de l'emballage doit être supérieure ou égale à:
Prix: Negotiable
MOQ: 3000pcs
Heure de livraison: 1 month
Marque: FZX Fanout Process and Product
Description: LED constant current driver chip; Chip size 0.4mm*0.555mm*0.20mm; Panel size 310*320mm; Package size 122mm*50mm; Process: Patch on the temporary carrier board, press EMC film, etching, then drill the hole, do electrode-plating. Applications: Mini-LED, lamps Specifications: Chip size 0.4... Voir plus
➤ Visiter Site Internet
Équipement d'alimentation pour les véhicules à moteur à combustion interne
Prix: Negotiable
MOQ: 3000pcs
Heure de livraison: 1 month
Marque: FZX Fanout Process and Product
Description: 310*320mm panel size; Package size: 2.0*2.0mm; Package thickness: 0.5mm; Chip size: 1.0*1.6mm; Process type: FOPLP (Face Up); Process flow: face up encapsulation method is adopted. After a single patch, bump, plastic sealing and grinding (exposing the ball), then punch holes and electro... Voir plus
➤ Visiter Site Internet
TGV haute résolution des couleurs Capacités de fonderie pour l'emballage de semi-conducteurs
Prix: Negotiable
MOQ: 10 panel
Heure de livraison: 1 month
Marque: FZX -TGV
Description: As shown in the following table, the glass core substrate with 510mmX515mm size can be manufactured inside the manufacturing line. The glass thickness is varied from 0.3mm to 1.5mm (some can be extended to 5mm thick). The aspect ratio (diameter/ thickness of glass)can be varied from 1:1... Voir plus
➤ Visiter Site Internet
Efficacité élevée malgré le trou / trou aveugle sur le verre 35um pour les puces GPU / CPU / AI
Prix: Negotiable
MOQ: 10 panel
Heure de livraison: 1 month
Marque: FZX Fanout Process and Product
Description: As shown below photo, the blind or through holes can be made with angle controlling, the laser and acid methodology can be combined together to make customer specific holes. The glass can be coming from different suppliers, e.g., AF32/BF33 (Schott), EAGLE XG or AGC, etc. The shape of ho... Voir plus
➤ Visiter Site Internet
Panneau de substrat en verre à haut rendement Taille 510*515mm PVD 300mm-600mm
Prix: Negotiable
MOQ: 10 panel
Heure de livraison: 1 month
Marque: FZX Fanout Process and Product
Description: The panel level PVD can be performed at both sides of the panel simultaneously. It is high efficient and time saving process. The panel sizes are varied within 300mm-600mm. Ti/Cu can be performed as the seed layers. The thickness is controlled with 0.1-2 micro meters. The uniformity in ... Voir plus
➤ Visiter Site Internet
Technologie du substrat en verre - double face de revêtement stable et facile à entretenir
Prix: Negotiable
MOQ: 10 panel
Heure de livraison: 1 month
Marque: FZX -plating

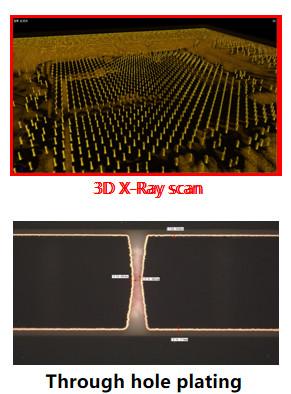

Description: The panel plating machine is used for plating, Plating uniformity can achieve below 10%,High aspect ratio of glass through-hole plating can be performed, AR < 10 : 1 1,All pass padding Dia .: 100 μm Cu thick .: 10 μm Glass thick .: 600μm 2,Through hole plating Dia .: 50 μm Cu thick .... Voir plus
➤ Visiter Site Internet
